In this article, we are going to see how we can integrate Azure data source with Graphite and Grafana. This will allow us to monitor metrics from the applications hosted in Azure cloud on Grafana dashboard.


    In this article, we are going to see how we can integrate Azure data source with Graphite and Grafana. This will allow us to monitor metrics from the applications hosted in Azure cloud on Grafana dashboard. We will also see how to integrate Azure Active Directory with MetricFire’s Hosted Graphite and Grafana.

    You don’t need to have fully functional cloud services running with Azure to understand this article, but it does assume that you have basic familiarity with Azure cloud.

    To follow along with this blog, you should sign up for the MetricFire's free trial.

    What is Azure

    Azure Cloud is one of the most popular platforms for building and deploying cloud applications. Azure provides all the major features of cloud services such as Compute, Storage, Content Delivery Network (CDN), Domain Name Service (DNS), Blog Storage, and Queue Messaging. Launched in 2010, Azure has multiple data centers around the world.

    Azure has a built-in monitoring product called Azure Monitor. However, its visualization and customization is not as powerful as Grafana. That’s why many users prefer Grafana as their monitoring and visualization solution even though Azure Monitor is built in into Azure cloud.

    The other aspect is the pricing of Azure Monitor. Grafana and Graphite are open source solutions free of cost whereas Azure Monitor comes under the category of proprietary software.

    Getting Started with Azure Cloud

    If you have not done so already, sign up for a new account at As of June 2020, Azure provides $200 credit for 30 days, and 12 months of free products. The only catch is that the free products included in this offer are restricted to some of the products and Azure Monitor is not included. Azure monitor is a key product, which we will be covering in this article later on.

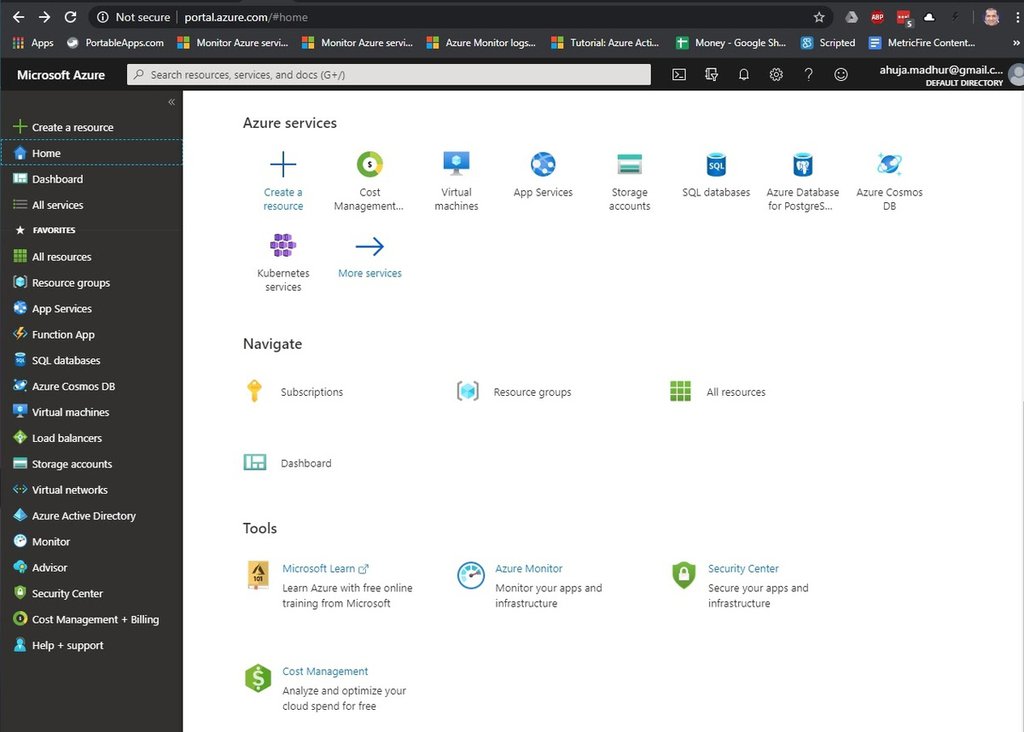

    Once logged in, you will be presented with a home screen as follows:

    Azure Home screen Azure Home screen

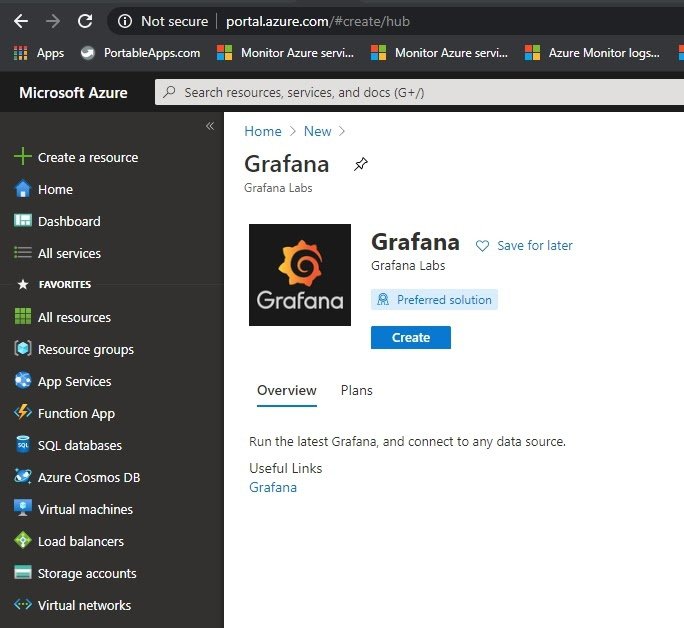

    We will now provision Grafana in our Azure cloud.  Click on “Create a resource” and provision the Grafana instance on our Azure cloud.

    Grafana Grafana

    Fill in the details like VM username and password and Grafana server admin password. We will choose a suitable VM size, storage account and default network configuration settings and hit Create.

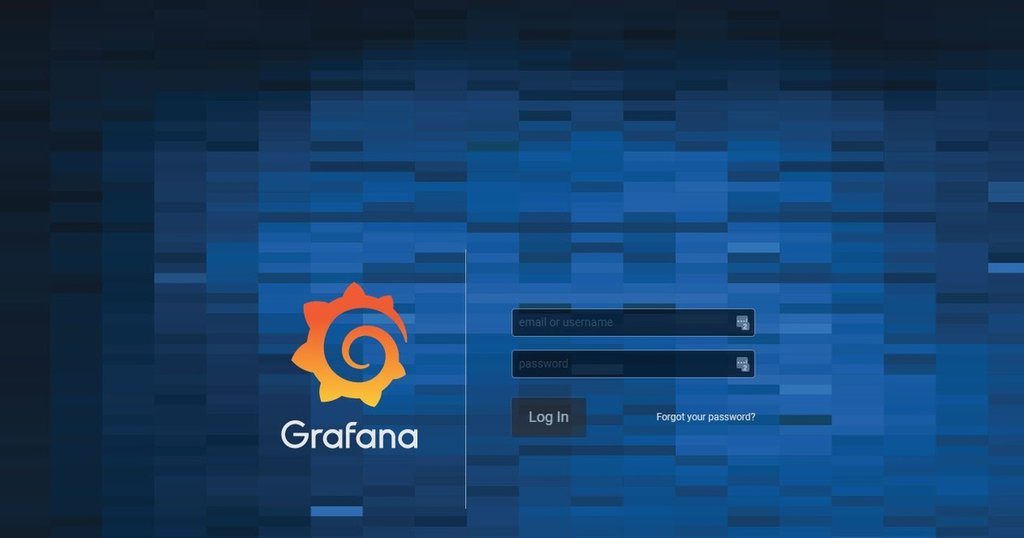

    Once the VM is provisioned on Azure Cloud, we will be able to login into the Grafana Virtual Machine using http://<VM IPAddress>:3000 in our browser.

    Grafana Virtual Machine Grafana Virtual Machine

    Configuring Azure Monitor Data Source

    Azure monitor data source requires a few configuration options, such as service principal. Follow these instructions to provision a service principal if you have not done so in your Azure cloud application. This will provide you with tenant ID, Application ID and client secret.

    If you want to use Application Insights, then you also need an Application ID and API Key. If you have not already done so, follow these instructions to provision these.

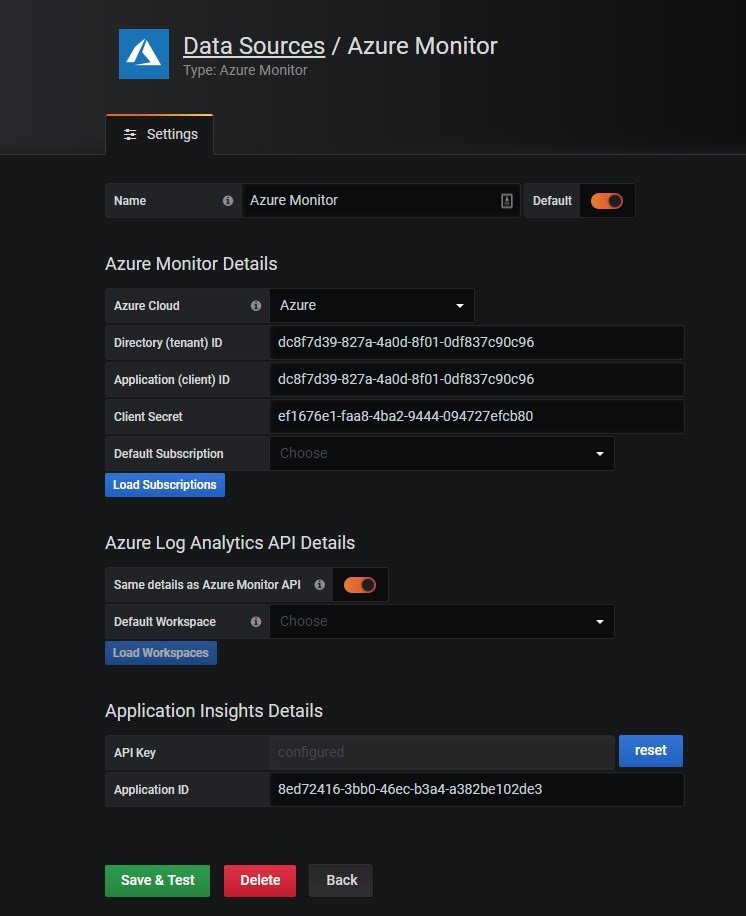

    Once all the details are provided, let's go ahead and save the data source settings. We are now ready to build the Grafana dashboard with the metrics from the Azure monitor.

    Azure monitor Azure monitor

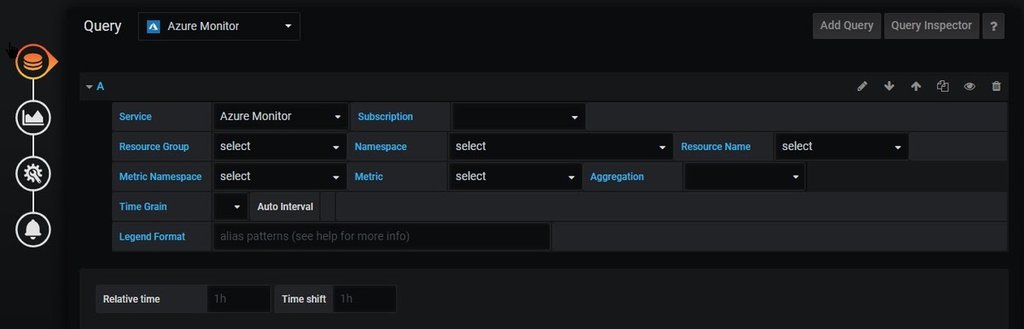

    Let’s head over to Grafana homepage and create a new dashboard with our new Azure Monitor data source. Once we choose the Azure Monitor as the data source, there are a number of options to be provided to specify the metric we want to plot the metric on the dashboard.

    Azure monitor/query Azure monitor/query

    Most of these are self explanatory. One important thing to be noted here is the namespace. For the VM you would want to choose, Microsoft.Compute/virtualMachines namespace.

    Similarly, the namespaces for Networking and Storage would be Microsoft.Network/networkInterfaces and Microsoft.Storage/storageAccounts respectively. The full list of namespaces and their associated metrics is provided by Azure in this article. With these available metrics we can build useful dashboards which plot both host metrics as well as application metrics on to the Grafana dashboard.

    For example, the below dashboards show the CPU usage of the VMs and the right one shows the number of transactions happening in Azure Storage in realtime.

    Azure dashboard Azure dashboard

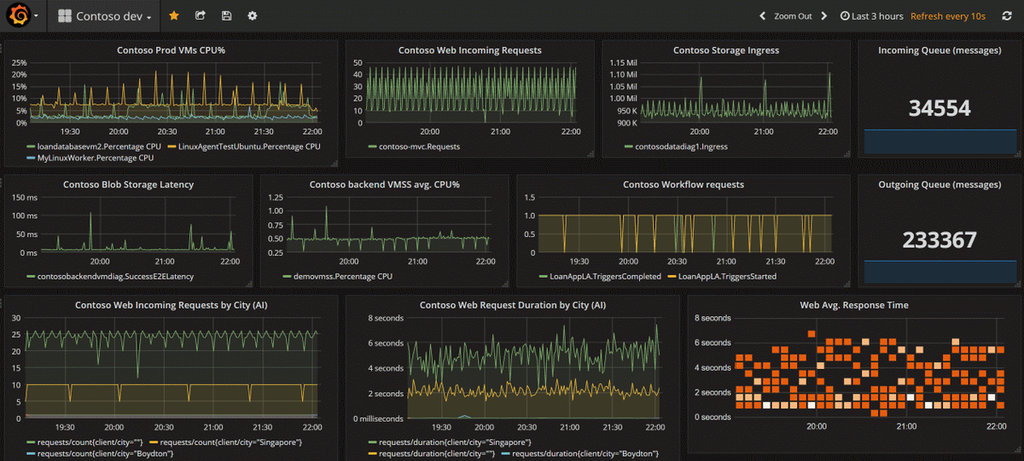

    Similarly, we can combine multiple types of visualizations measuring different Azure metrics onto the Grafana dashboard as shown below.

    Grafana Dashboard.png

    Another interesting thing to be noted here is that we are not just restricted to visualize the metrics supported by Azure Monitor only. We can even push our custom application metrics hosted in Azure cloud to Graphite, and configure the Graphite data source in Grafana to visualize them. Have a look at the articles such as Graphite for Node.js Monitoring and Graphite and Grafana to configure the same for your applications.

    You can also set alerts on these dashboards if the value of the observed metrics fall out of the allowed range. For more information on how to create such advanced dashboards, have a look at our articles on Grafana Dashboards from Basic to Advanced Dashboards and Our Favorite Grafana Dashboards.


    Introduction to Azure Active Directory

    In the above integration, if you have noticed, we have been using the login mechanism provided by Grafana. Ideally, most of the enterprise applications follow Single Sign On (SSO) conventions which means that once the user authenticates with his enterprise credentials, the user shouldn’t be required to enter his credentials anywhere else including the Grafana.

    This is where Azure Active Directory comes into picture. Azure Active Directory allows an organization to centrally manage identity and authentication management for multiple services.

    Added benefits of Azure Active Directory Integration with Hosted Graphite and Grafana

    MetricFire’s Hosted Graphite and Hosted Grafana allows you to integrate with Azure Active Directory as well and set up Single Sign On (SSO) with your enterprise credentials to ensure seamless authentication across multiple services.

    The process to integrate the Azure Active Directory with Hosted Graphite is fairly straightforward. First, we login to the Azure AD portal and add the “Hosted Graphite” application from the gallery.

    On the “Configure Single Sign-on” configuration page, enter the Identifier as “” and Reply Url as “”. Also remember to download the certificate from this page.

    Once we have these details, we will head over to Hosted Graphite on the SAML setup page and enter the Issuer URL in Entity ID field, SAML SSO URL in the SSO Login URL field. In the certificate text box, we need to copy the contents of the certificate file we have downloaded.

    For more detailed instructions, have a look at the section “Azure Active Directory” in SAML Authentication. These instructions are also available in Azure Documentation.



    In this article, we have seen how users of Azure Cloud use the Grafana to view their application metrics using the Azure Monitor data source. We have also seen how to use Azure Active Directory to provide seamless login with the Hosted Graphite and Grafana.

    MetricFire provides production ready Hosted Graphite and Hosted Grafana which comes with this and a lot of other features which make monitoring Azure applications absolutely seamless.

    Sign up for the MetricFire free trial to set up Graphite and build Grafana dashboards now. You can also book a demo and talk to the MetricFire team about how you can best set up your monitoring stack.
